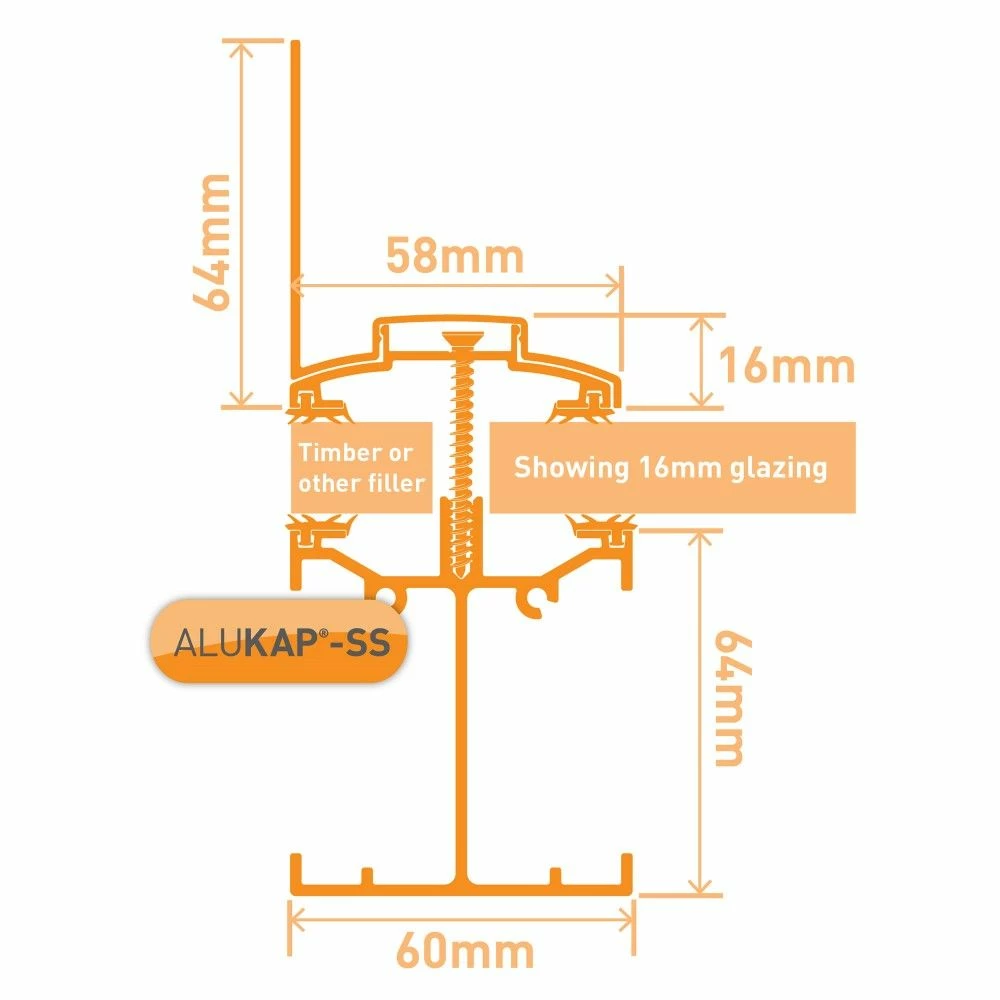

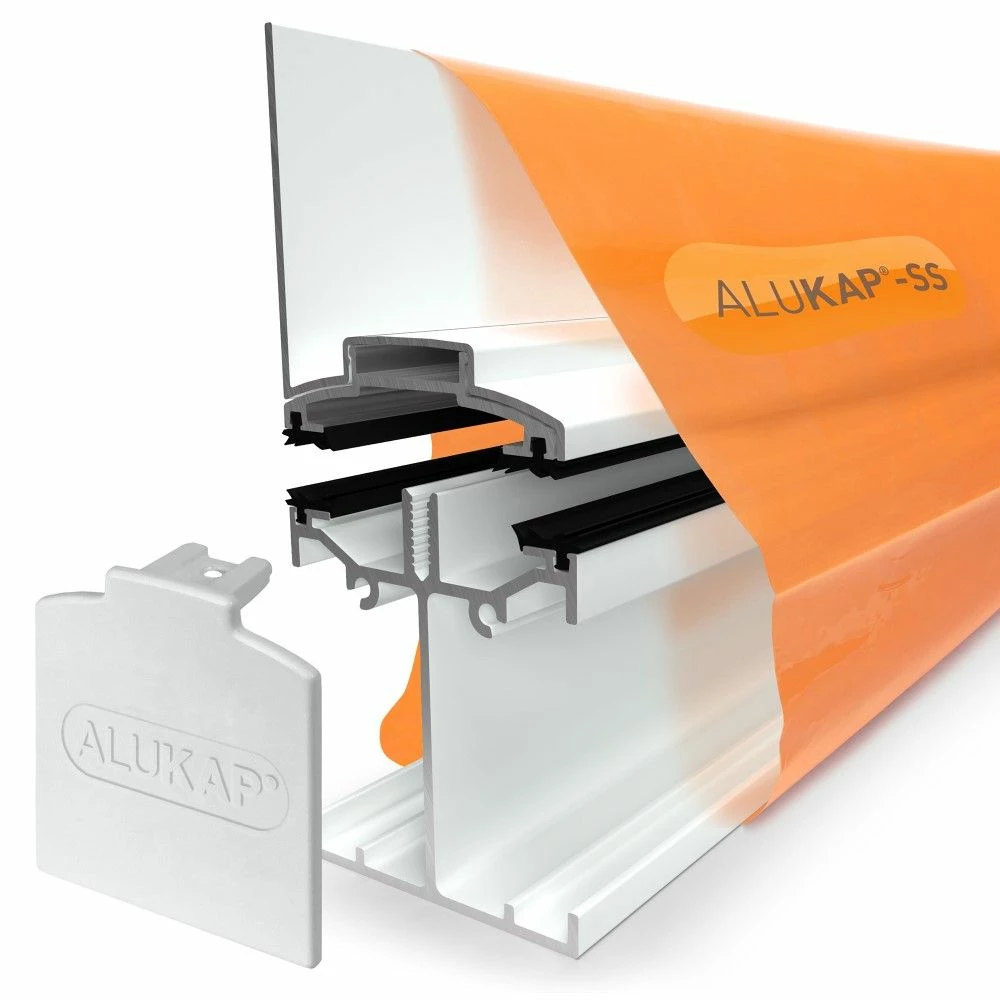

Alukap-SS Low Profile Wall Bar (140mm | 60mm X 3,000mm)

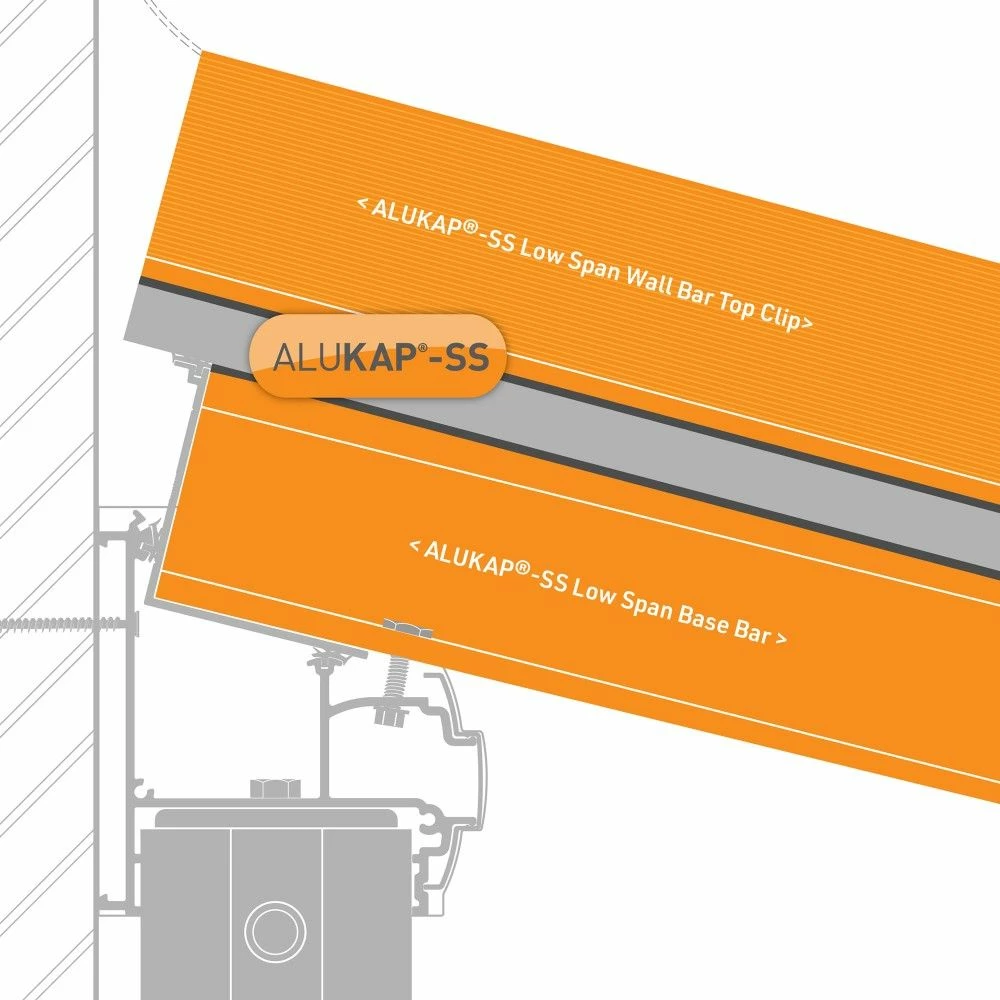

This 60mm x 3,000mm, 140mm thick, White Alukap®-SS Low Profile Wall Bar provides the perfect glazing finish on any roof where the end rafter abuts a rising wall. The Alukap®-SS Wall Bar integral upstand provides a perfect waterproofing upstand and an excellent detail for lead flashing over. The Alukap®-SS Low Profile Bar provides an excellent all-aluminium structural beam for unsupported glazing spans up to 4m depending on glazing material and glazing bar centres. Alukap®-SS suits glass or Axiome® polycarbonate of any thickness. The all-aluminium Alukap®-SS system provides a robust, long-lasting aesthetically pleasing finish to any residential, public, or commercial canopy or roofing structure. Estimated load span advice is available upon request, although users are advised to obtain their independent advice to verify the span calculations are correct for their site-specific application.
